Data center environments have changed faster than many battery replacement strategies. Key trends include:

1. Higher Temperatures

To reduce cooling costs, many facilities have raised setpoints. Even modest increases accelerate battery aging.

2. Denser Racks & AI-Driven Loads

AI and high-density compute introduce rapid load transitions and higher peak demand.

3. More Frequent Cycling

Short 5–15-minute autonomy windows mean UPS batteries discharge and recharge more frequently.

4. Higher Float Current Over Time

As batteries age in hotter, heavier environments, internal resistance increases, which leads to higher float current and greater heat output.

Traditional VRLA continues to serve many applications well. But these shifting conditions mean some sites benefit from extra resilience, efficiency, and recovery speed.

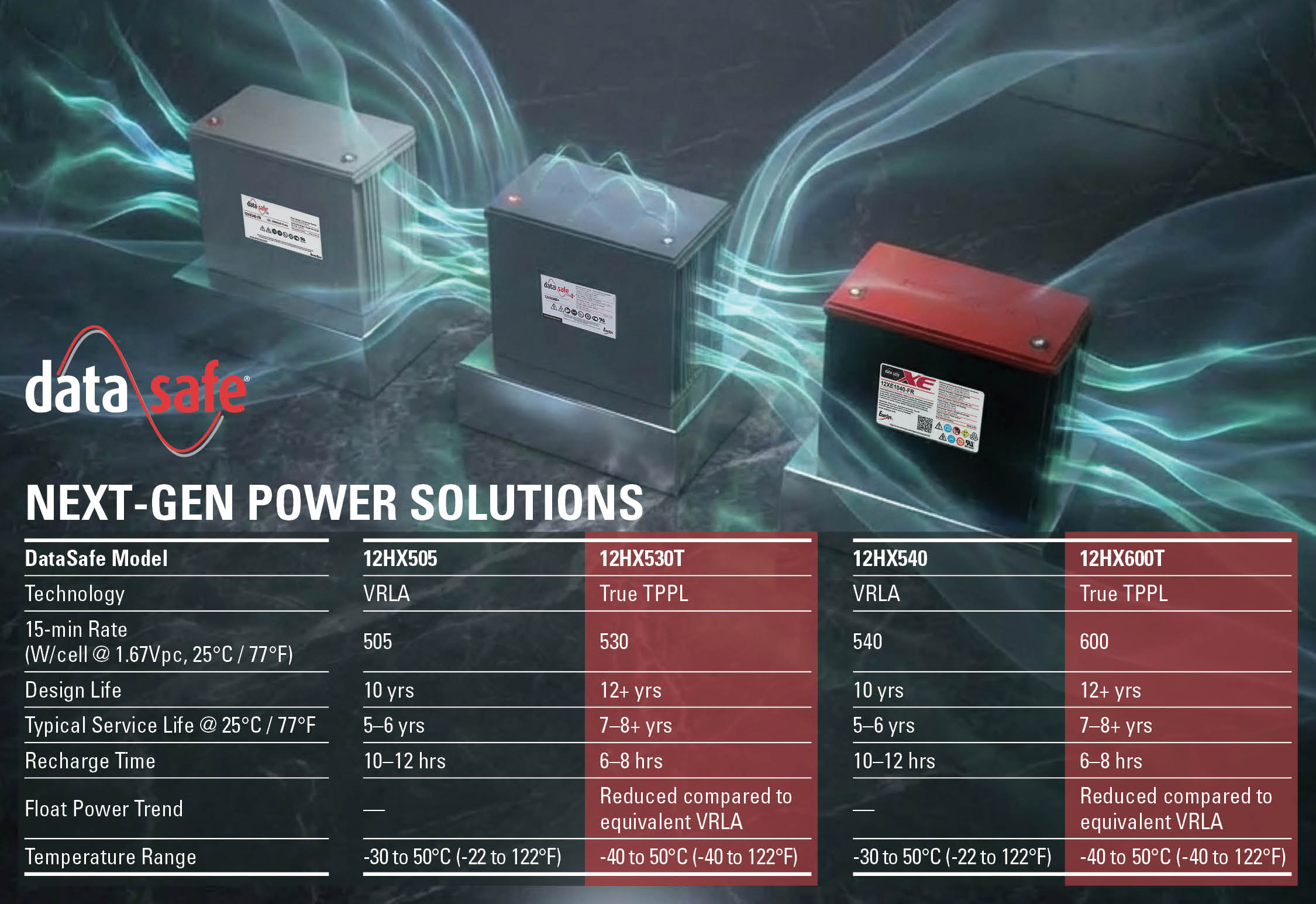

DataSafe® HX Specifications

Valve Regulated Lead Acid (VRLA)

A widely trusted technology offering dependable performance for many UPS applications. VRLA remains the right choice for numerous data centers operating within conventional temperature and load conditions.

• Proven chemistry.
• Strong performance in stable temperature environments.
• Widely deployed across data centers.
• Supported by EnerSys recycling programs.



Thin Plate Pure Lead (TPPL) Technology

A refinement of VRLA chemistry using pure, thinner lead plates to increase surface area and lower internal resistance.

What TPPL adds:

• Higher power and improved efficiency at the 15-minute rate (to 1.67Vpc @ 25°C / 77°F).
• Uses pure, thin lead plates.
• Offers lower internal resistance and faster recharge.
• Better performance in hotter rooms and high-rate discharge.
• Lower float current (which can support lower cooling demand).

Think of TPPL technology as an advancement and as an option for sites where conditions have moved beyond the typical VRLA envelope.

DataSafe® HX Specifications

Same format. Improved chemistry. Proven reliability.

For more than a decade, the DataSafe® HX battery range has powered the world’s most critical UPS systems. The new DataSafe® HX530T and HX600T batteries extend the line with added performance for demanding environments, not as replacements for VRLA batteries, but as additional choices aligned with modern needs.

At the heart of every new bloc lies true TPPL technology: 99.99% pure lead grids engineered for higher energy density, lower internal resistance, and faster charge recovery.

The result isn’t just an upgrade. It’s the evolution of the DataSafe® HX battery platform.

Why operators are choosing true TPPL-based models:

• Run at higher room temperatures.
• Support AI or fast-shifting loads.
• Experience frequent utility disturbances.
• Want faster recharge.
• Need stable 5–15 minute autonomy performance.



DataSafe® HX Specifications

Pure Lead Construction

• 99.99% pure lead plates reduce grid corrosion and capacity loss
• Increased surface area supports higher power output
• Built for short-duration high-rate discharge



Faster Recharge & Efficiency

• Low internal resistance enables fast recovery.
• Reduced float current = potential cooling and energy savings.
• Stable recharge even after successive outages.



Reliable Service Life Under Real Conditions

• Design life: 12+ years @ 25°C (77°F).
• Typical service life: 7–8+ years @ 25°C (77°F).
• Reliable performance at ambient temperatures up to 50°C (122°F) when operated within recommended parameters.
• VRLA DataSafe® HX batteries remain well-suited for standard environments.
• TPPL models provide added durability and performance for sites experiencing higher stress.



Together, these innovations provide measurable gains in power density and operating efficiency for modern UPS systems.

DataSafe® HX Specifications

More power, same confidence, and no redesign. Evolution without disruption.

You don’t need to rebuild your UPS architecture to achieve next-generation performance. The DataSafe® HX530T and HX600T batteries fit seamlessly into existing DataSafe® HX battery installations and UPS architectures.

Benefits at a glance:

• Same physical dimensions and terminal layout as equivalent DataSafe® HX batteries.
• Compatible with all major UPS manufacturers.
• Top-terminal layout.
• Simplified retrofits and replacements, with no cabinet, racking, or cabling redesigns required.
• Reduced commissioning time and consistent maintenance procedures.

For operators wanting to boost reliability without redesigning their UPS setup, this is one of the simplest paths forward.

DataSafe® HX Specifications

Modern data centers need more than capacity, and with rising load variability, especially in AI and high-density environments, UPS batteries are under increased scrutiny to handle quick transitions and repeated cycling.

DataSafe® 12HX530T and 12HX600T batteries with true TPPL technology are engineered for these requirements.

• Optimized for reliable 5–15-minute high-rate discharge applications.
• Rapid recharge capability between grid events.
• Low impedance for consistent power output under dynamic load.
• Added resilience under elevated temperature and higher duty cycles.
• Efficiency improvements due to lower float current
• Ideal for UPS systems in edge, enterprise, and hyperscale environments.



VRLA remains a solid foundation; TPPL technology adds performance where modern conditions demand more.

DataSafe® HX Specifications

EnerSys designs every DataSafe® HX battery with durability, energy efficiency, and environmental responsibility in mind. These batteries support both reliability and responsible lifecycle management.

Lifecycle management features:

• >99% recyclability of lead, plastic, and electrolyte.
• Closed-loop recycling available through EnerSys and approved partners.
• Lower float current can help reduce energy consumption and supports total lifecycle emissions
• Extended service life minimizes waste and replacement frequency.
• Manufactured in facilities certified to ISO 14001 environmental management standards.



DataSafe® HX Specifications

Choose standard VRLA DataSafe^® HX batteries when:

• Temperatures are stable
• Runtime and recharge expectations are predictable
• Loads are not cycling heavily
• Standard replacement intervals fit your operation

Choose TPPL-based DataSafe^® HX530T and HX600T batteries when:

• Room temperatures have increased
• AI or high-density loads create fast power shifts
• Runtime drift has appeared
• Faster recharge is becoming important
• Utility events are more frequent
• You want more performance margin without redesign

No. They use the same footprint and terminal layout as the standard DataSafe® HX battery range.

Yes. VRLA remains a reliable and widely deployed solution. TPPL batteries are simply an option for sites facing tougher conditions.

Lower internal resistance, faster recharge, stronger high-rate output, and improved behavior at higher temperatures.

Yes. Both VRLA and TPPL models use materials that are >99% recyclable.

Data centers, telecom, industrial UPS systems, and high-rate short autonomy applications.
